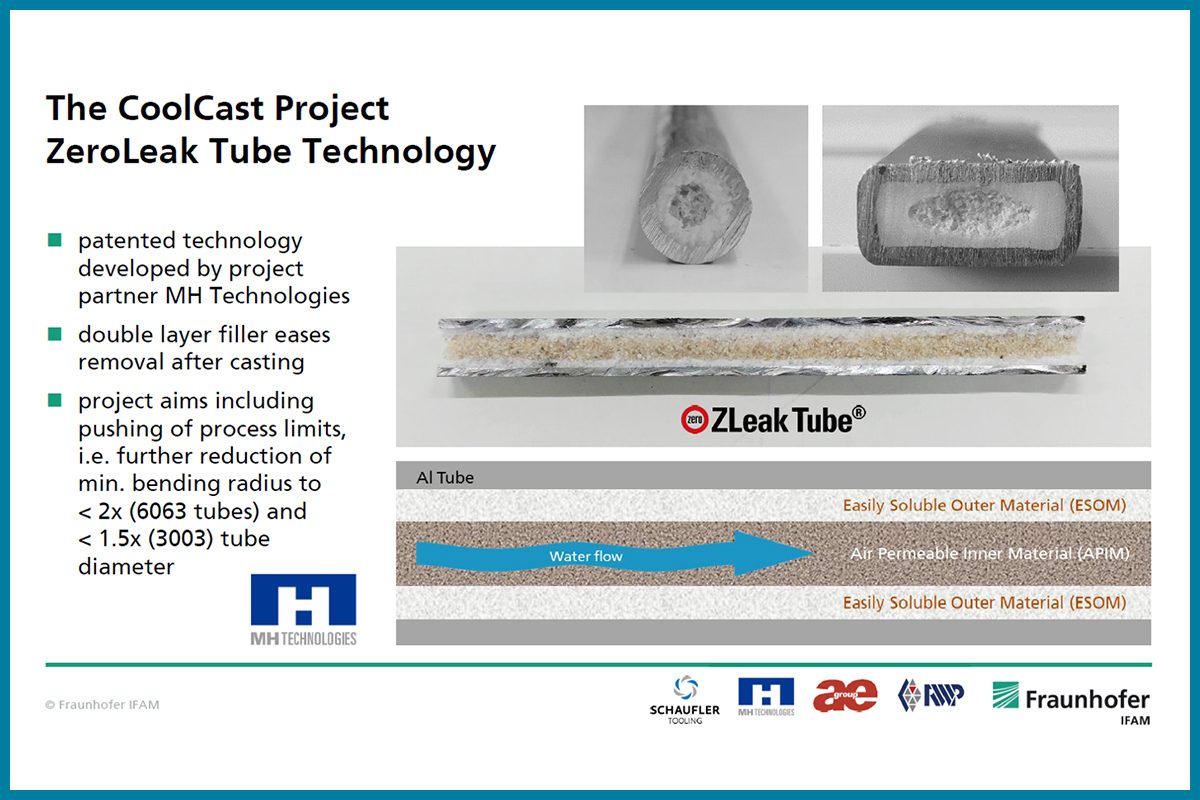

ZLeak Tube® is a pre-formed aluminum pipe with special filler materials. It can sustain its own shape as original from the high pressure and high temperature of HPDC.

The inserting ZLeak Tube® HPDC process can finish the casting process simply onetime. The fillers in the tube are easily and clearly removed after casting, and the empty tube becomes water coolant channel.

The single HPDC process with ZLeak Tube® provides lower cost, shorter production time and no more leakage failure mode. It has no more particles in the channel unlike sand-core casting.

Leakage free

Inserted Casting

Technology

TOP

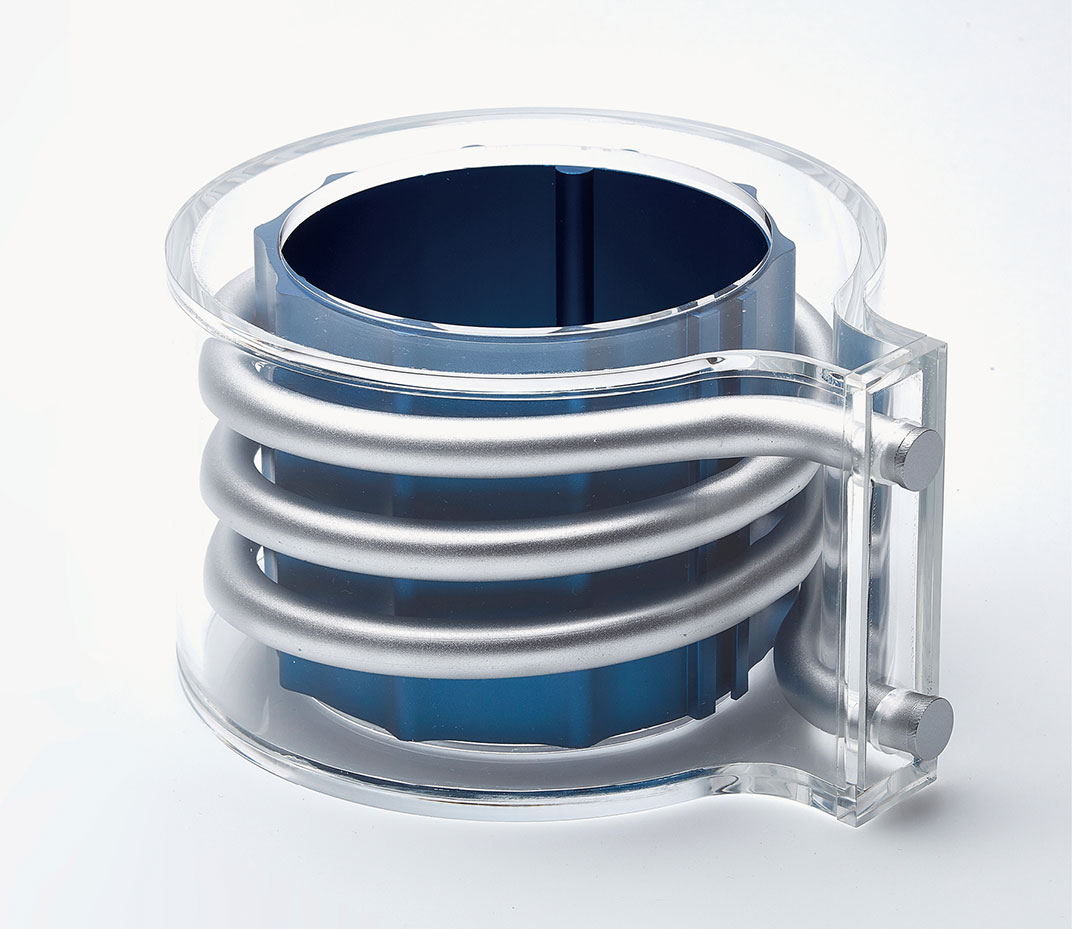

Water-cooled Motor housing

Hpdc Housings

- Single Casting
- Low Cost
- Simple Design

Leakage-Free Guaranteed

- No Sealing Process Required
- No Machining Process Required
- No Planarity Issue

Helical Shaped Cooling Channel

- Better Performance

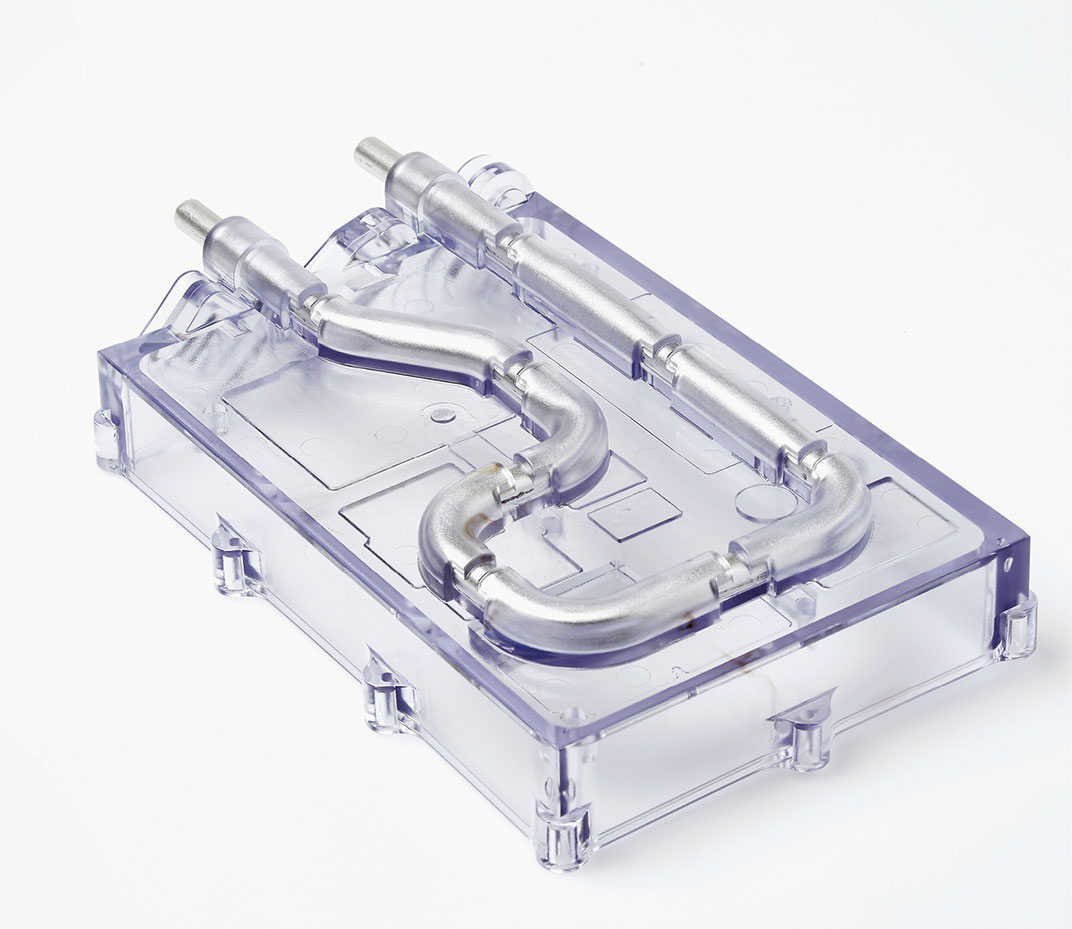

Water-cooled Converter housing

Hpdc Housings

- Single Casting
- Low Cost
- Simple Design

Leakage-Free Guaranteed

- No Sealing Process Required
- No Machining Process Required
- No Planarity Issue

Helical Shaped Cooling Channel

- Better Performance

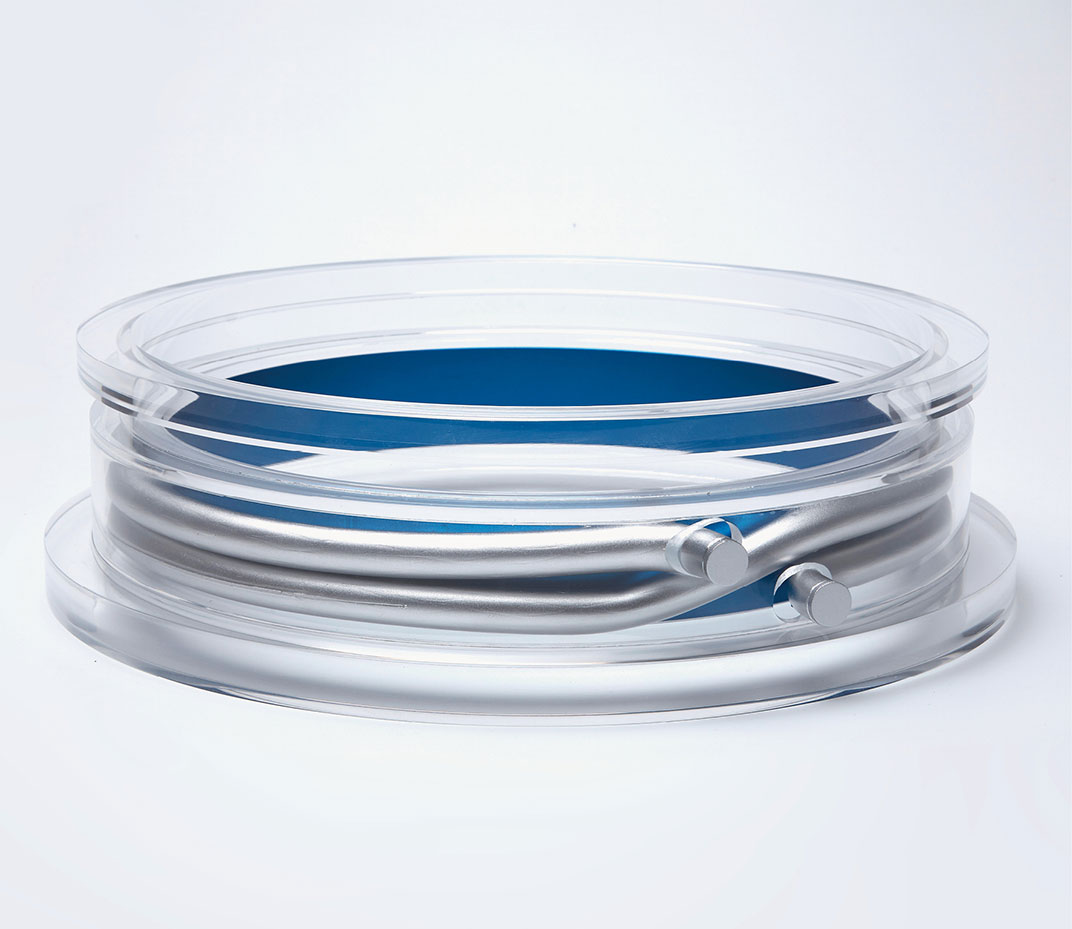

Water-cooled Assistant Traction Motor housing

Hpdc Housings

- Single Casting
- Low Cost
- Simple Design

Leakage-Free Guaranteed

- No Sealing Process Required
- No Machining Process Required
- No Planarity Issue

Helical Shaped Cooling Channel

- Better Performance
